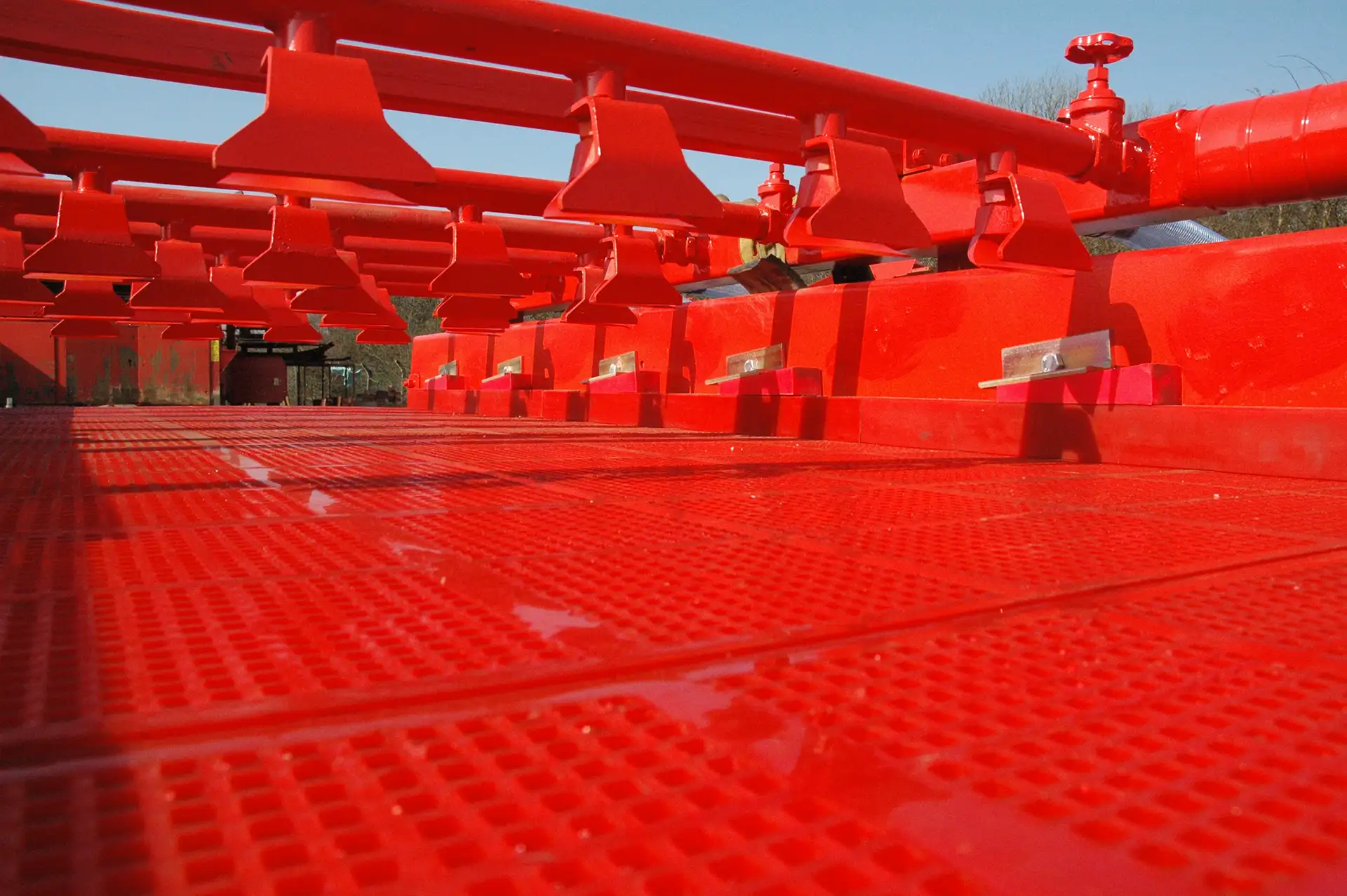

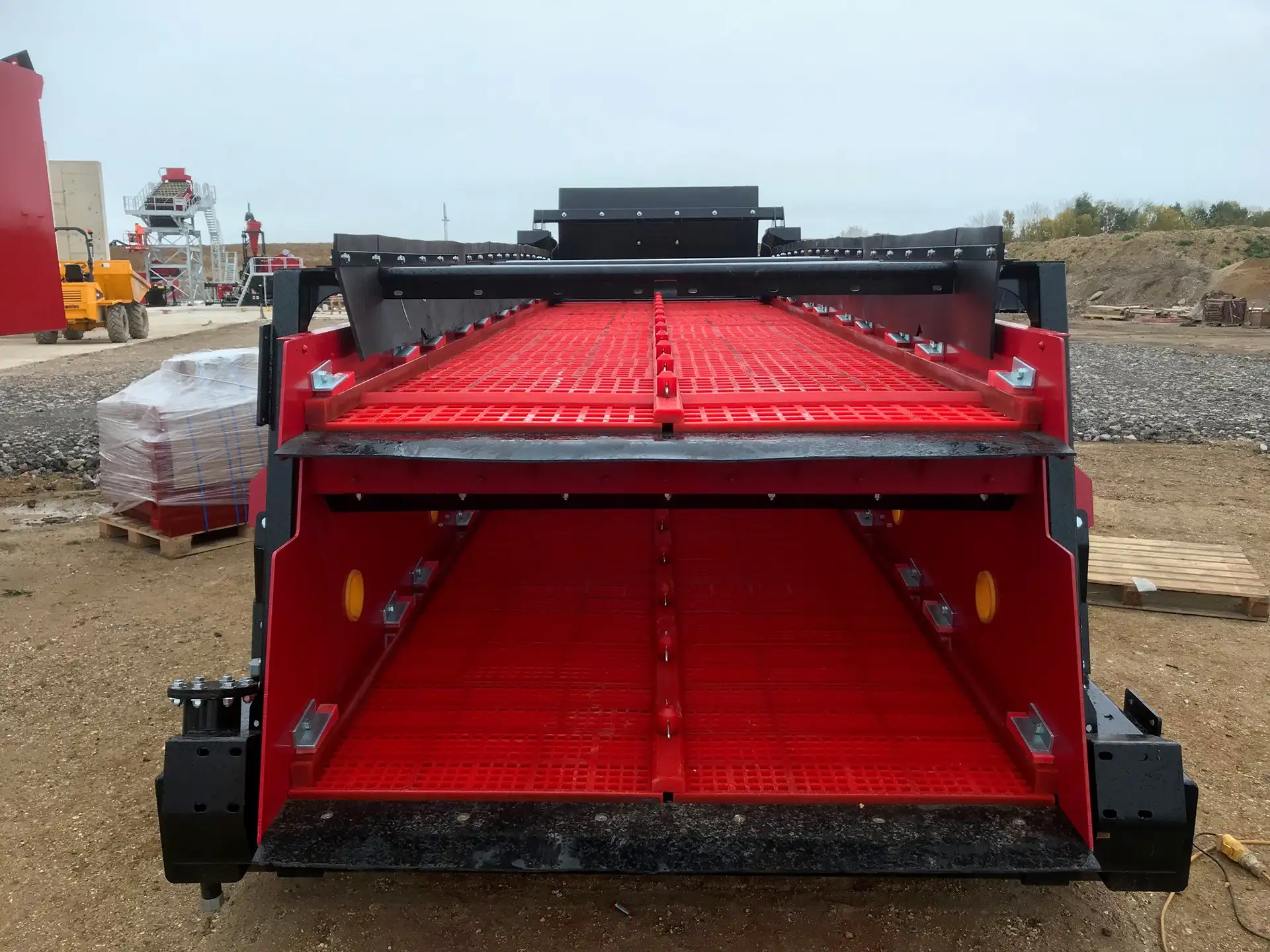

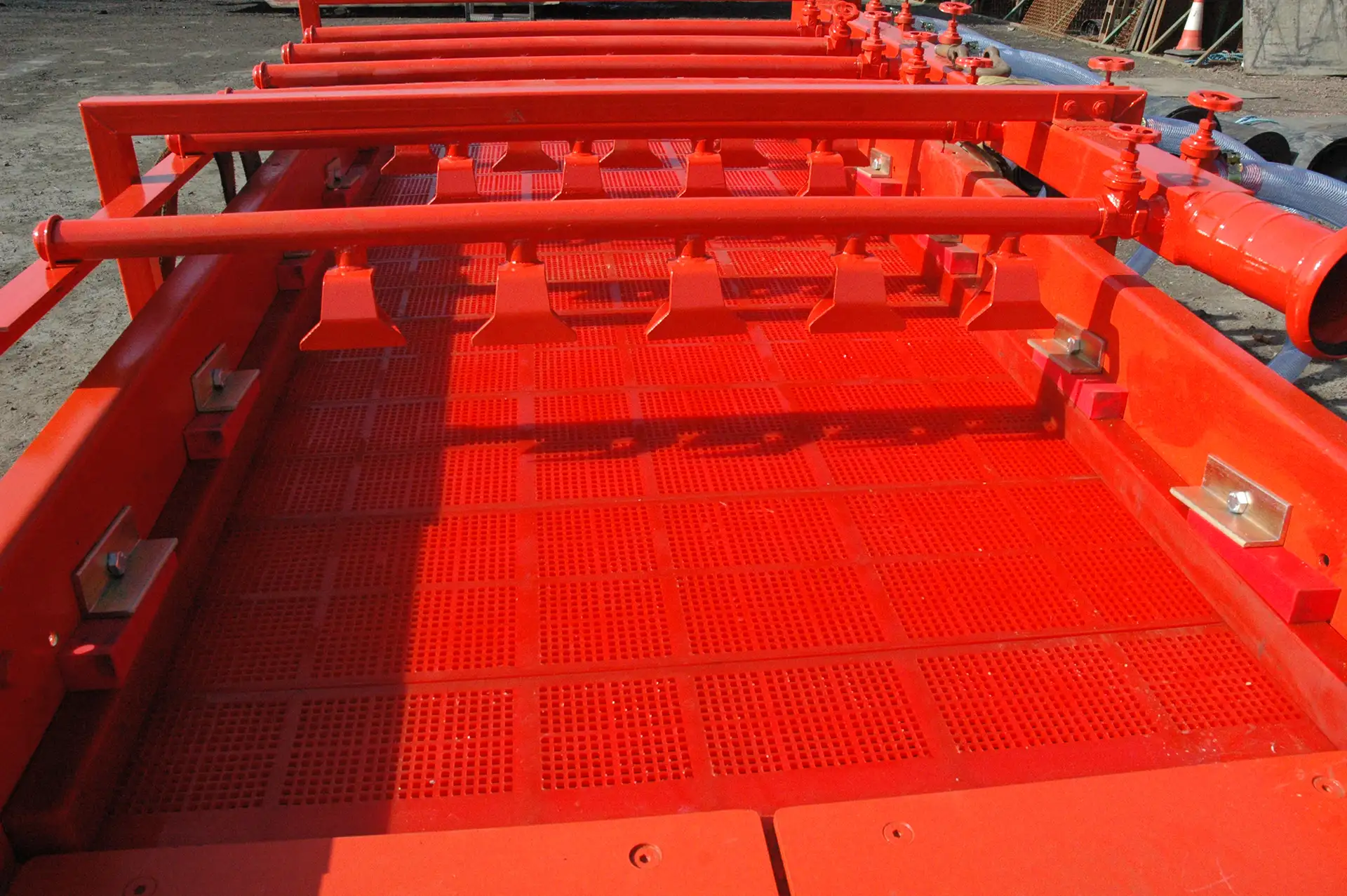

The plank system is designed for simplicity and efficiency. It doesn’t require complex profiles or specialised steel support structures, just a flat deck frame. Installation is quick and straightforward, using wedges to clamp the system securely in place. Maintenance is straightforward, needing only basic tools like a hammer and crowbar, thanks to the simple horizontal blow needed to install the fixings, it is a good system for installations with low clearance

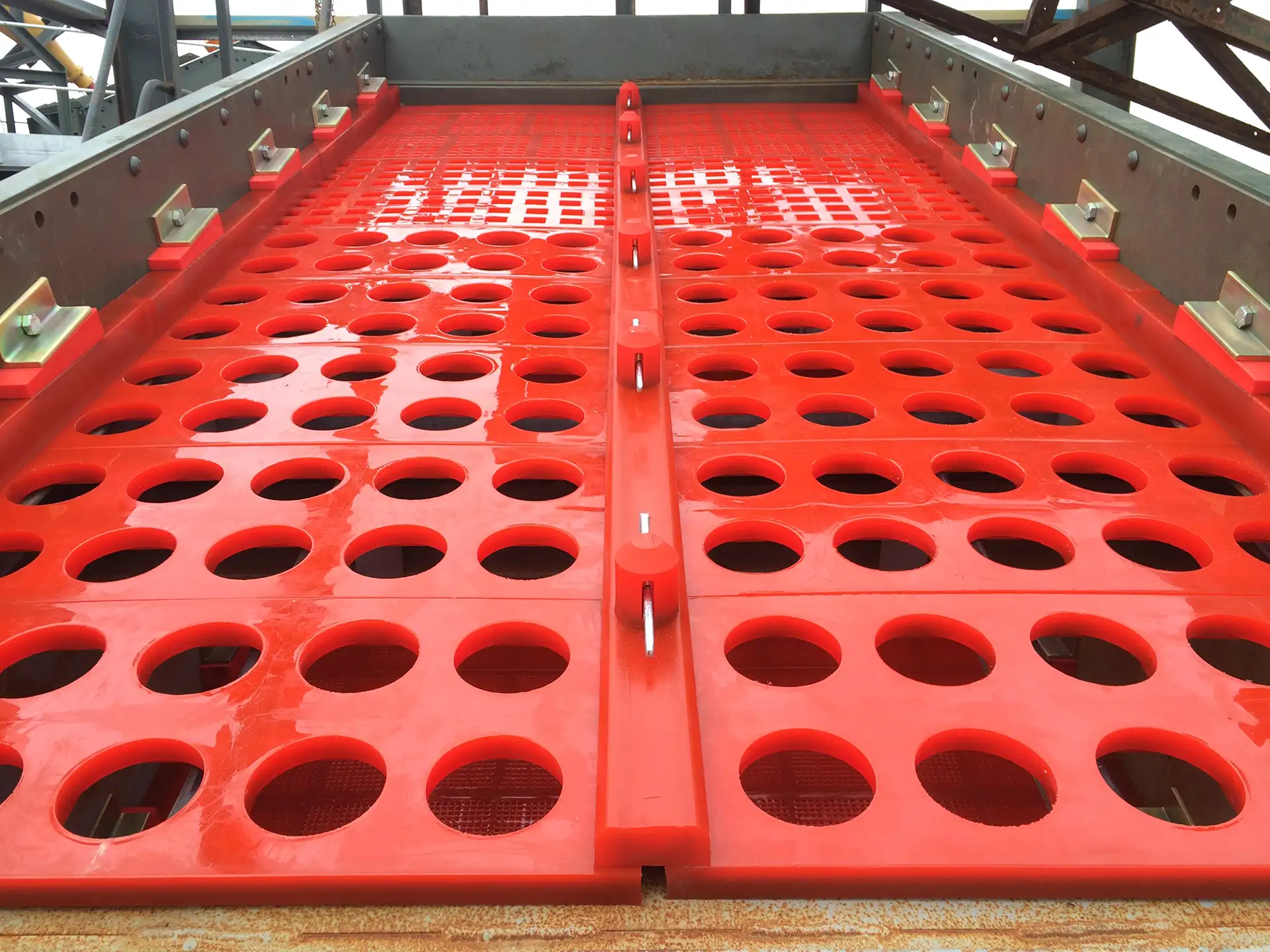

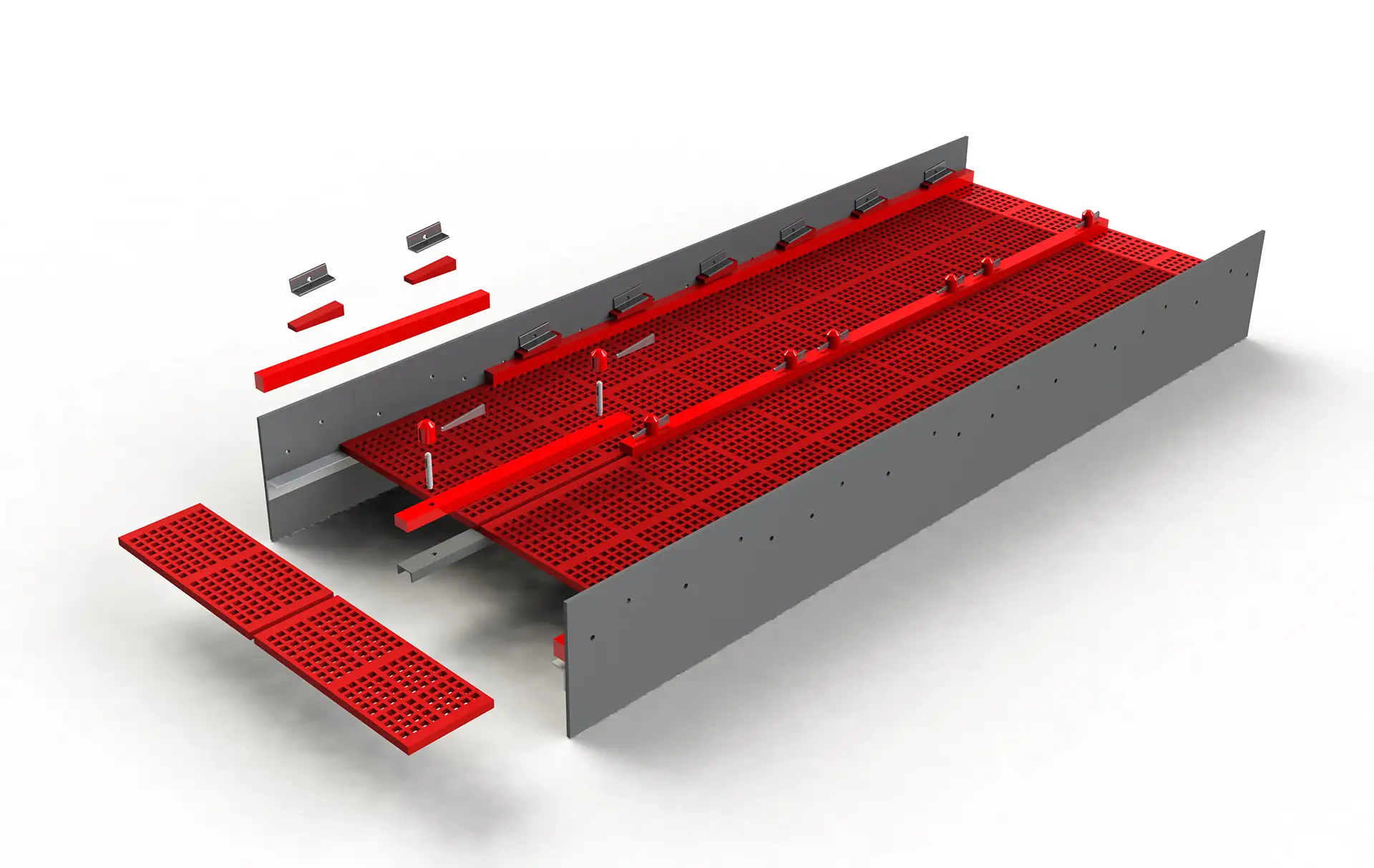

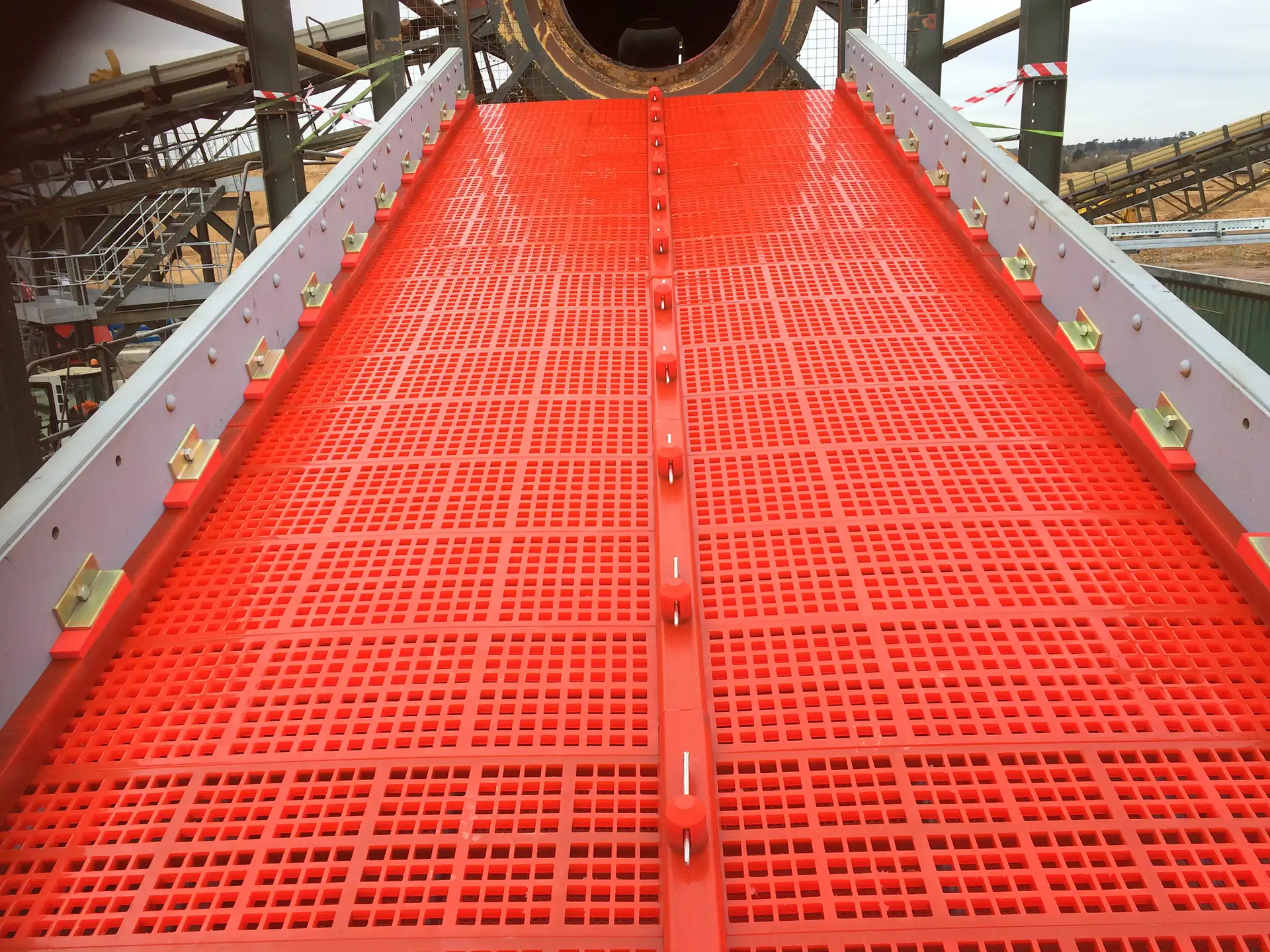

The plank system modules are rectangular, typically 315mm long, and the width is dependent on the width of the screen. In most cases this style of system fits in pairs across the deck, sitting on a side angle and centre channel (single sections are used on smaller screens and triple sections are required on large screens).
The plank system modules are composed of a welded steel frame construction, which the polyurethane is then moulded around with a typical overall module thickness of 30mm.
