SCS600 Modular System – The 600 system was one of the first modular systems in the market place. The main benefit being that it is a unitised system (i.e. primarily one standard size of module), very simple and a flat deck system.
The modules are nominally described as 600mm long by 300mm wide and 40mm high. The 600 system modules are composed of a welded steel frame construction, which the polyurethane is then moulded around.

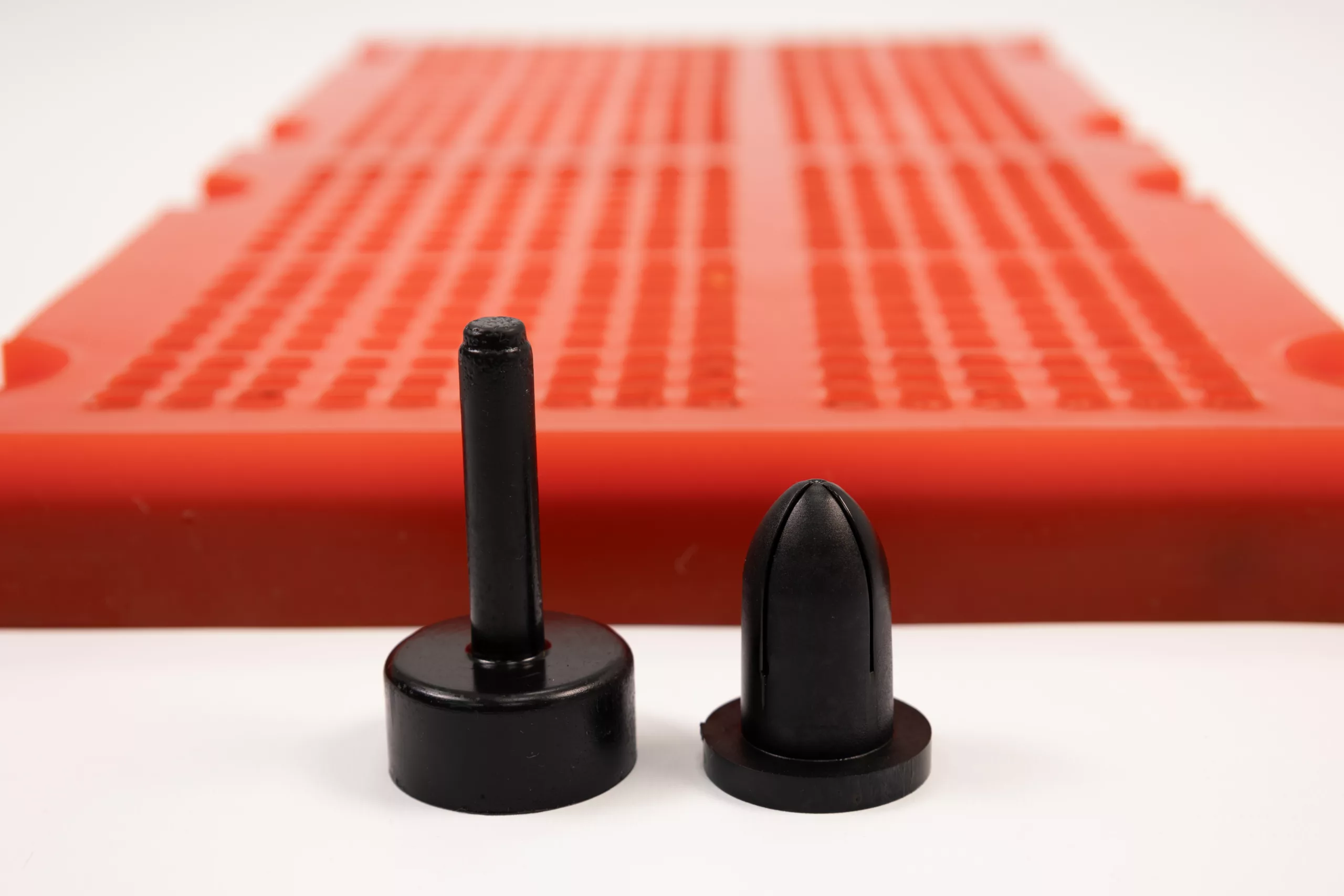

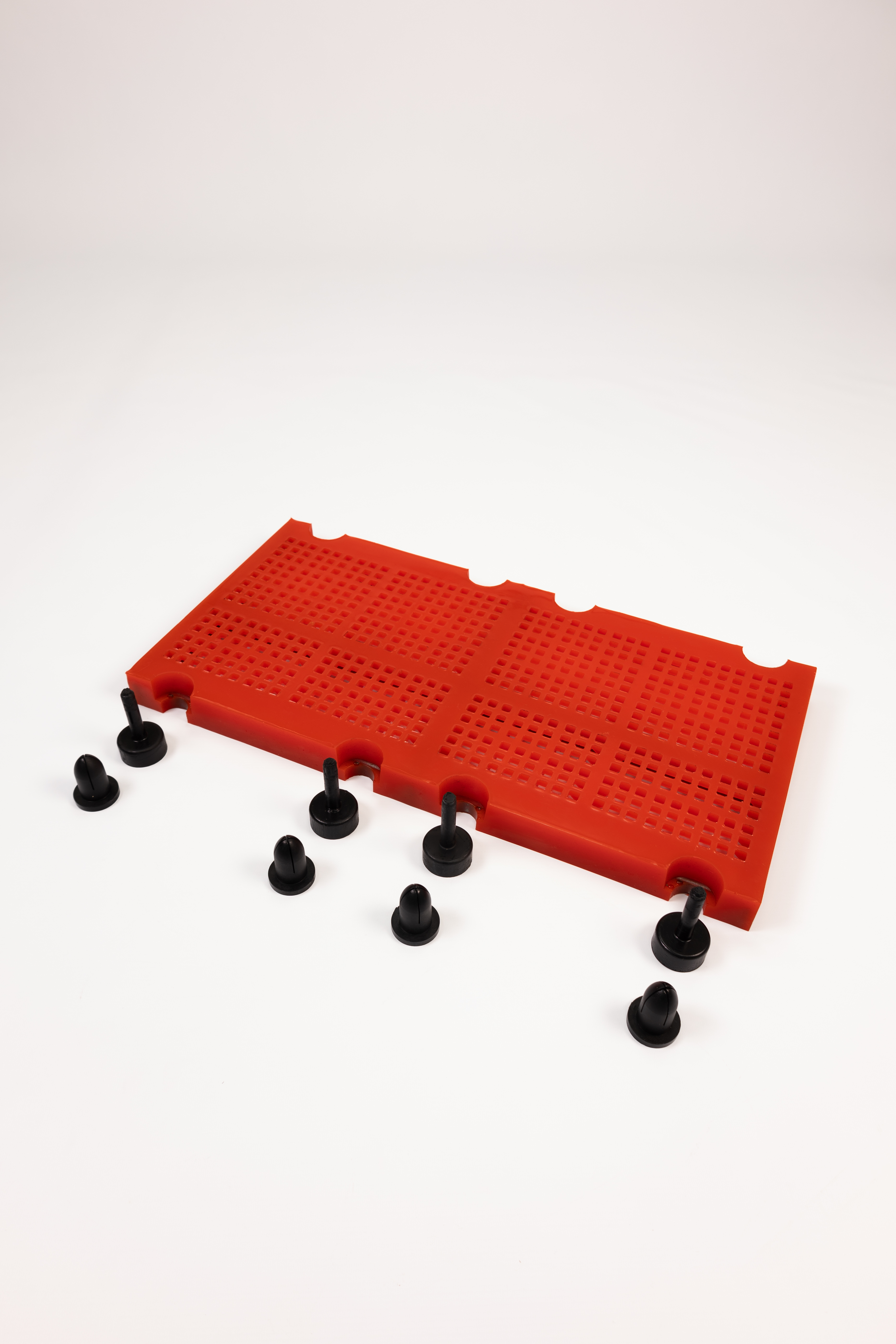

SCS600 system modules are held in place by peg and sleeves, along each 600mm side of the module there are four half circles moulded into the module with a shoulder approximately 30mm down. When a row of modules is installed, the sleeves are inserted through where the two half circles in the modules align and a hole in the screen frame is drilled. The peg is then hammered through the sleeve spreading the legs of the sleeve and holding the module in position.

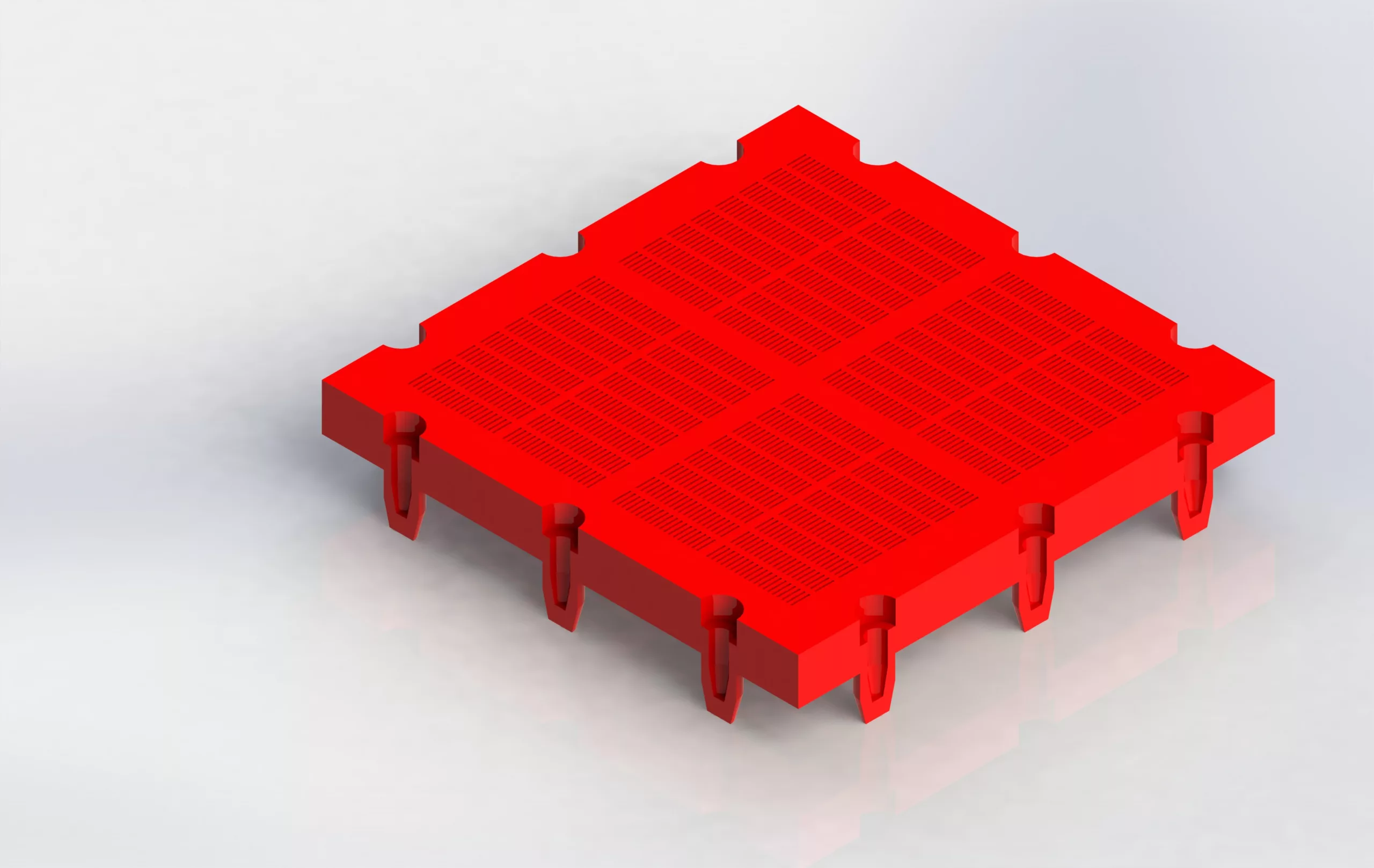

There are several different square module modular systems on the market that utilise a unitised system, these modules are typically 300 or 305mm square and are held in place with peg & sleeves, pins or pins that are moulded to the module itself. These types of modules are used most in dewatering applications as they are very strong due to their small size however this counts against them in grading applications where the reduced open area affects the overall efficiency of the screening application.
