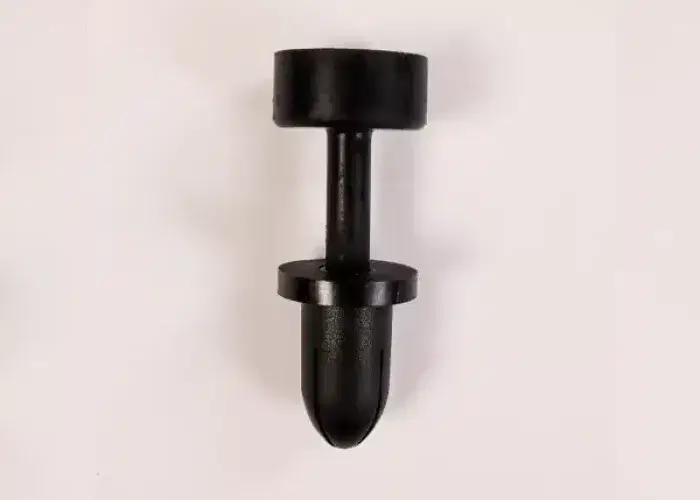

Used to secure the screen media to the screen frame, different modules will require different configurations. If you are unsure which one is right for your system please get in touch and we will be happy to advise.
Contact us on 01788 553300 or sales@scsrugby.co.uk for more information.

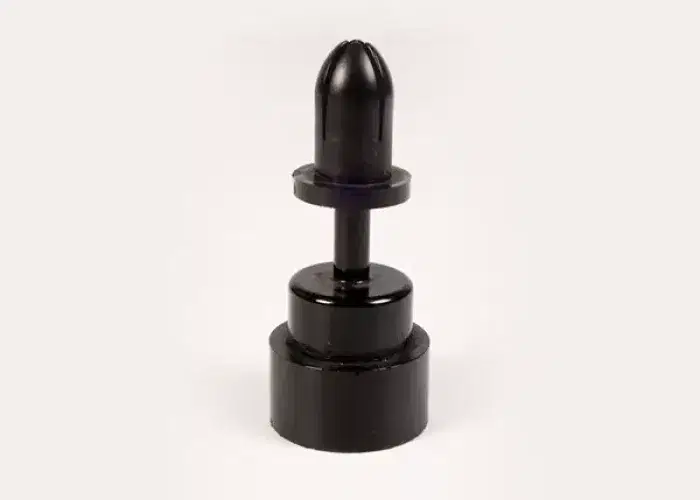

These special diverter pegs are used to prevent material tracking down the blank areas of the module.
Polyurethane side bars come in various sizes, the most common size of side bar supplied by SCS is a 50mm wide and 60mm high bar, the length is varied to suit the screen length but normally a maximum of 1250mm long. There are twenty different width and height combinations of side bar that SCS supplies as standard and other can be made on request.
Side bars typically constructed from a steel plate or steel hollow section for strength and then polyurethane is moulded around all sides with attention paid to the thickness on the wear faces of bar.
Other more specialised side bars are available most commonly for the 85 system which have profiles moulded to them or are knocked into the 85 system girder are also available.
Please contact us on 01788 553300 for more information.
Polyurethane Wedges and metal cleats are used in conjunction with polyurethane or polyethylene side bars to clamp down screen media at each side of the screen.
